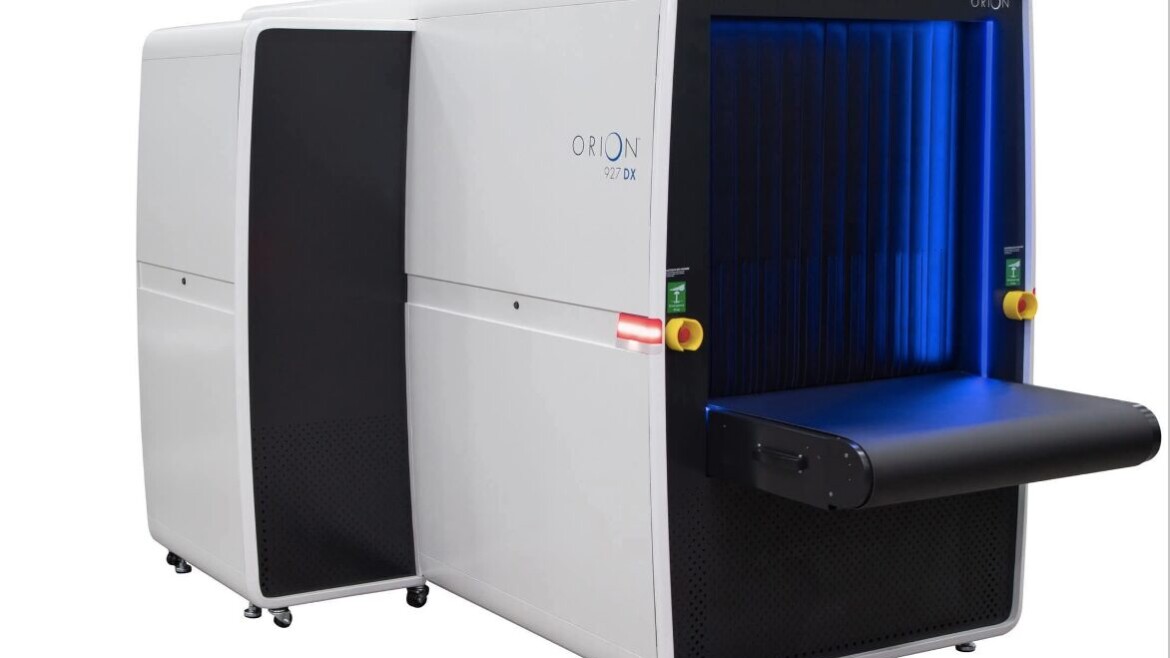

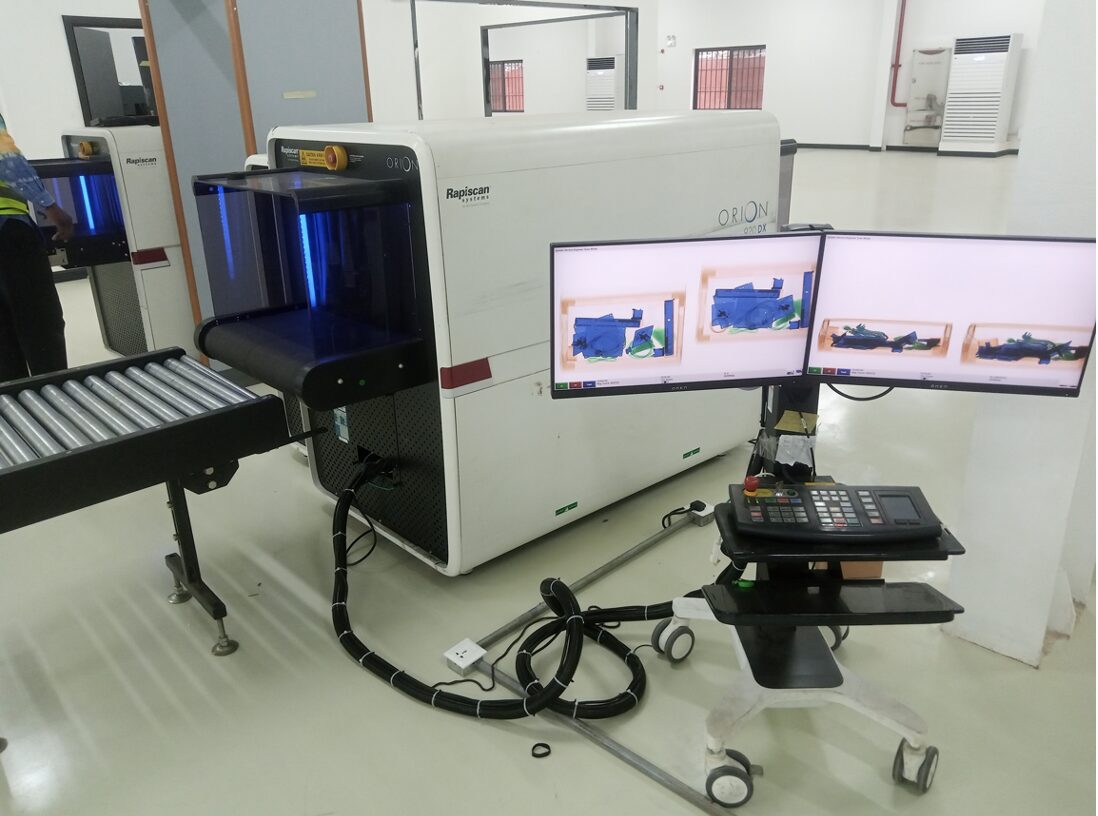

927DX

The Rapiscan Orion 927DX Baggage Scanning Machine is a high performance 1010mm by 1010mm tunnel dual-view screening system with excellent image quality and excellent threat detection alert capabilities. The 927DX has a standard-height conveyor; with the belt positioned around waist level. It’s suitable for screening large parcel and small cargo that are not very heavy to lift.

• Exceptional Image Quality
• Explosives & Narcotics Detection
• Low Density Image Enhancement
• Matrixing, Networking & Remote Viewing

SPECTRUM 4-COLOR IMAGING
927DX now can exhibit images in the Classic 4-color and the new proprietary Spectrum 4-color (SP4) option providing superior image, allowing improved security by quick and accurate identification of threats and increase in throughput.
EXPLOSIVES AND NARCOTICS DETECTION
Target and NARCScan are designed to detect a wide range of explosives and narcotics respectively in real time during the scanning process by marking a potential threat on the X-ray image. Rapiscan® Systems detection algorithms are based on regulatory approved material analysis techniques.

DUAL MODE AUTO Z_EFF
The new dual mode Zeff feature helps with identification of organic materials accurately and quickly either in Range mode which highlights the areas based on range selected by the operator, and/or in Interactive mode which provides the operator the option to display the areas based on the value of the pixel.

EUROPEAN AVIATION COMPLIANCE
927DX performance is in full compliance with the mandatory regulations (EC) No. 300/2008, (EC) Implementing Regulation 1998/2015 and update 815/2017, EC Implementing Decision 8005/2015 and update 3030/2017 for aviation security in the European Union.

SPECIFICATIONS

TUNNEL SIZE: 1,010mm x 1,010mm (39.8in x 39.8in)

LENGTH: 3,855mm (151.2in)

WIDTH: 1,969mm (77.5in)

HEIGHT: 2,020mm (79.5in)

920DX

The Rapiscan Orion 920DX Baggage Scanning Machine is a high performance 640mm by 430mm tunnel dual view checkpoint screening system with excellent threat detection alert capabilities. It’s suitable for screening mail and small parcels.

• Industry Best Resolution
• Explosives & Narcotics Detection
• Low Density Image Enhancement
• Matrixing, Networking & Remote Viewing

SPECTRUM 4-COLOR IMAGING
920DX can present images to the operator in the Classic 4-color and the new proprietary Spectrum 4-color (SP4) option providing superior image, allowing improved security by quick and accurate identification of threats and increase in throughput.

EXPLOSIVES AND NARCOTICS DETECTION
Target and NARCScan are designed to detect a wide range of explosives and narcotics respectively in real time during the scanning process by marking a potential threat on the X-ray image. Rapiscan® Systems detection algorithms are based on regulatory approved material analysis techniques.

DUAL MODE AUTO ZEFF
The Dual Mode Zeff feature aids the operator in the identification of organic materials, either in Range Mode which highlights areas based on operator selected Z-effective values of 7, 8 or 9, or in Interactive Mode which gives the operator the option to display the Z-effective number of a selected pixel.

EUROPEAN AVIATION COMPLIANCE
920DX performance is in full compliance with the mandatory regulations (EC) No. 300/2008, (EC) Implementing Regulation 1998/2015 and update 815/2017, EC Implementing Decision 8005/2015 and update 3030/2017 for aviation security in the European Union.

SPECIFICATIONS

TUNNEL: 640 mm x 430 mm (25.2 in x 16.9 in)

LENGTH: 2,316 mm (91.2 in)

WIDTH: 1,503 mm (59.2 in)

HEIGHT: 1,390 mm (54.7 in)

WEIGHT: 897 kg (1,978 lbs)

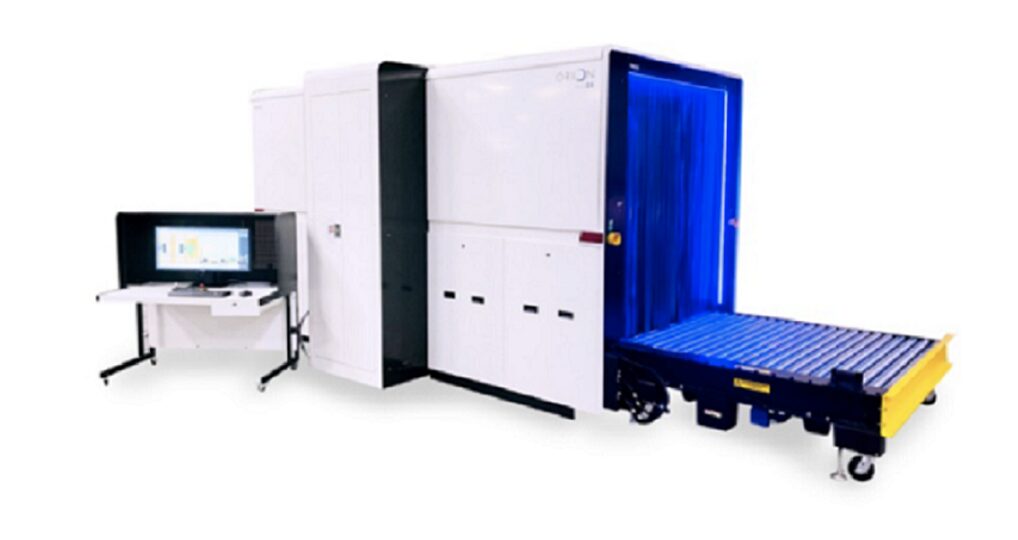

935DX

The Rapiscan Orion 935DX Machine is a high-performance dual view X-ray system for Air Cargo and pallet screening. Featuring a modular low conveyor system and a central under conveyor generator for the primary view, the Orion Suite continues to re-imagine X-Ray Screening.

• Best In Class Image Quality
• Central Under Belt Generator
• Advanced Operator Assist Tools
• Scalable Modular Design

SPECIFICATIONS

TUNNEL SIZE: W 1,520 mm (60.0 in) x H 1,820 mm (71.7 in)

LENGTH: 4,330 mm (170.5 in)

WIDTH: 2,589 mm (102.0 in)

HEIGHT: 2,453 mm (96.6 in)

920CX

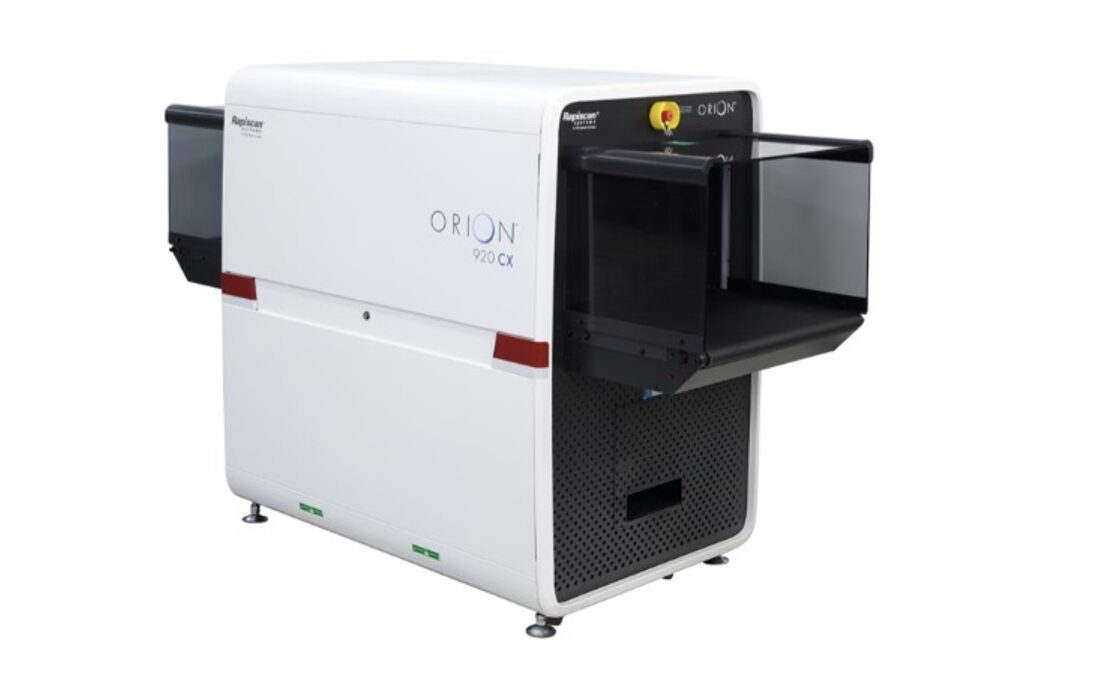

The Orion 920CX is a single-view, high performance 620mm x 420mm tunnel checkpoint X-ray screening system, with exceptional image quality and alert capabilities for the detection of explosives and narcotics.

Orion 920CX provides the best measured steel penetration, wire resolution and spatial resolution to complete its superior image quality and exceptional threat detection, ideal for high throughput checkpoint environments.

• Industry Best Image Quality for Exceptional Threat Detection
• Software Features & Options Aid Faster Screening
• Material Discrimination & Operator Assist Tools Support Image Analysis
• Matrixing, Networking & Remote Viewing Options

OPERATOR ASSIST TOOLS
Target™ function highlights regions of an X-ray image that could be explosive material. The algorithm estimates factors such as atomic number, density, and size and then compares these values to characteristics of known explosive materials to identify possible threats.

NARCScan algorithm is designed to highlight areas of an image that might contain narcotics. NARCScan works in real time, using a proprietary algorithm to process scan data to estimate material characteristics including atomic number, density, and size.

Density Threat Alert (DTA) visually highlights high-absorbing regions of the X-ray image. The algorithm generates a visible alert on the screen and the user can select the density threshold at which this alarm will activate, to best meet the needs of their application.

SPECTRUM 4-COLOR IMAGING
Rapiscan’s proprietary Spectrum 4-color Imaging provides operators the ability to easily change between Classic 4-color and Spectrum-4 for a brighter color palette, a key option which allows faster screening leading to increased throughput and improved security.

DUAL MODE AUTO Z_EFF
This feature aids the operator in quick identification of organic materials, either in Range Mode which highlights areas based on operator selected Z-effective values of 7, 8 or 9, or in Interactive Mode which gives the operator the option to display areas based on the Z-effective value of a selected area. This capability enhances both the efficiency and accuracy of the material identification screening process.

MATRIXING, NETWORKING & REMOTE VIEWING
Available networking options offer the ability to perform configuration management from one central network computer, remote network image archive review from a unified management platform, remote status monitoring through a web enabled interface, and a multi system alarm resolution network display station to improve the effectiveness of manual searches by providing scanned reference images to the manual screener.

SPECIFICATIONS

TUNNEL SIZE: 620 mm x 420 mm (24.4 in x 16.5 in)

LENGTH: 2,082 mm (82. in)

WIDTH: 869 mm (34.2 in)

HEIGHT: 1,377 mm (54.2 in)

918CX

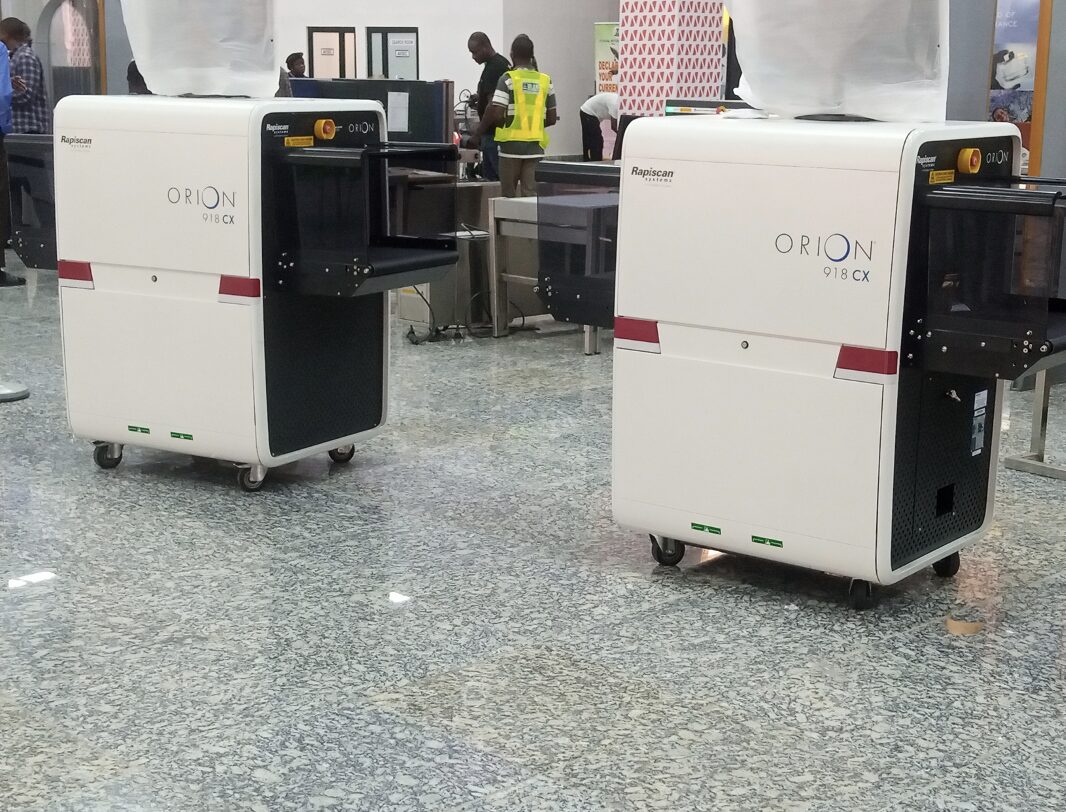

The Rapiscan Orion 918CX Scanning Machine is a single-view, high performance compact and versatile 540mm by 360mm tunnel X-Ray system with exceptional image quality and alert capabilities for detecting what could be narcotics and explosives in checkpoint baggage, mail and small parcels.

Orion 918CX offers best in class spatial resolution providing exceptional image quality, its small size makes it an ideal solution for schools, hotels, convention centers and event-based security environments.

• Industry Best Resolution for Greater Image Details
• Software Features & Options Aid Faster Screening
• Material Discrimination & Operator Assist Tools Support Image Analysis
• Matrixing, Networking & Remote Viewing Options

EXPLOSIVES AND NARCOTICS DETECTION
Target and NARCScan are designed to detect a wide range of explosives and narcotics respectively in real time during the scanning process by marking a potential threat on the X-ray image. Rapiscan detection algorithms are based on regulatory approved material analysis techniques.

DUAL MODE Z_EFF
This feature aids the operator in quick identification of organic materials, either in Range Mode which highlights areas based on operator selected Z-effective values of 7, 8 or 9, or in Interactive Mode which gives the operator the option to display the Z-effective number of a selected pixel.  This capability enhances both the efficiency and accuracy of the material identification screening process.

SPECTRUM 4-COLOR IMAGING
Rapiscan’s proprietary Spectrum 4-color Imaging provides operators the ability to easily change between Classic 4-color and Spectrum-4 for a brighter color palette, a key option which allows faster screening leading to increased throughput and improved security.

MATRIXING, NETWORKING & REMOTE VIEWING
Available networking options offer the ability to perform configuration management from one central network computer, remote network image archive review from a unified management platform, remote status monitoring through a web enabled interface, and a multi-system alarm resolution network display station to improve the effectiveness of manual searches by providing scanned reference images to the manual screener.

 SPECIFICATIONS

TUNNEL SIZE: 540 x 360 mm (21.3 x 14.2 in)

LENGTH: 1,657 mm (65.2 in)

WIDTH: 794 mm (31.3 in)

HEIGHT: 1,356 mm (53.3 in)

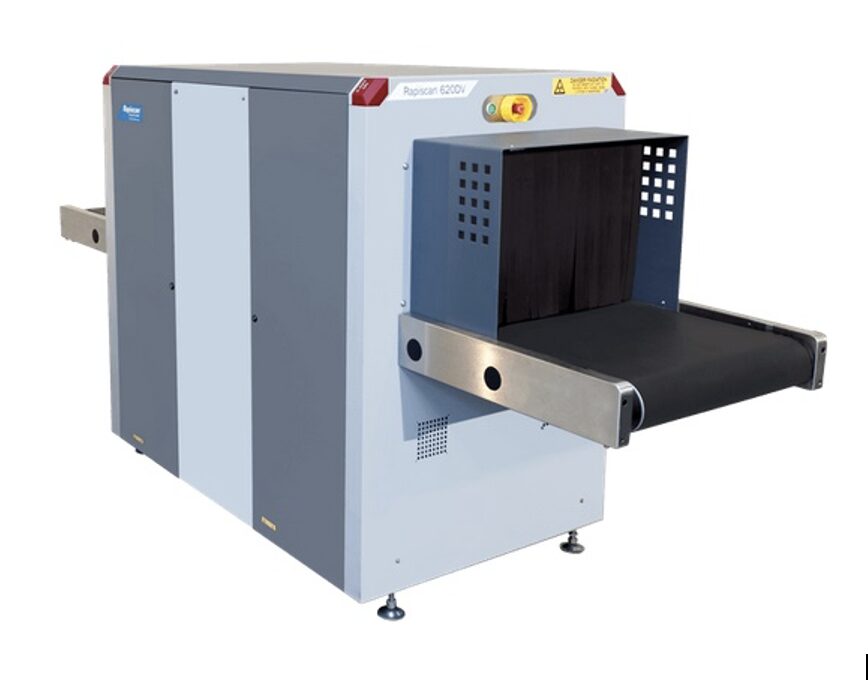

620DV

This is a carry-on baggage checkpoint screening solution approved by U.S. Transportation Security Administration (TSA), European Civil Aviation Conference (ECAC), France Civil Aviation Authority (STAC) and U.K. Department for Transport (DfT).

The 620DV is an advanced checkpoint screening solution, designed for aviation and high security applications. It uses innovative dual view technology to generate a horizontal and vertical view of the object under inspection.

620DV has been approved and included on the qualified list applicable to the U.S. TSA Advanced Technology (AT) checkpoint program as well as the qualified list applicable to E.U. ECAC Liquid Explosive Detection System (LEDS) Common Evaluation Process (CEP) for security equipment.

620DV provides unsurpassed image quality, regulatory approved detection alert of solid explosive software (Target) and Liquid Explosive Identification Software (aLEXis) with the largest global approvals and certifications.

• High Performance Advanced Checkpoint Screening
• Dual View Technology
• Largest Global Regulatory Approvals

DETECTION OF EXPLOSIVES AND NARCOTICS ALERT
Target and NARCScan are designed to assist operators in the detection of a range of explosives and narcotics respectively in real time during the scanning process by marking a potential threat on the X-ray image. Rapiscan^® Systems detection algorithms are based on regulatory material analysis techniques.

MEETING TODAY’S MOST STRINGENT GLOBAL REQUIREMENTS
The 620DV meets the most rigorous detection and image quality requirements as set by the U.K. Department of Transport (DfT), European Union, and French civil aviation authority (STAC).

REGULATORY COMPLIANCE
620DV performance is in full compliance with the European Union regulations (EU) No. 2015/1998 and Commissions Decision C (2015)8005 for aviation security.

EASE OF USE PROVIDING HIGHEST THROUGHPUT
With over 13 image processing tools and detection alert algorithm functions, the feature rich software allows the operator to more easily and accurately search for contraband.

DUAL VIEW ADVANCED TECHNOLOGY
The 620DV utilizes a dual view technology which produces two simultaneous images (vertical and horizontal views) of the scanned object. It provides a more complete image, thereby reducing the need for repositioning and rescanning and enabling rapid, accurate and comprehensive threat detection.

SPECIFICATIONS

Tunnel Size: 640 mm (W) x 430 mm (H) (25.2 x 16.9 in.)

Length: 2,880 mm (113.4 in.)

Width: 1,430 mm (56.3 in.)

Height: 1,418 mm (55.8 in.)
